Performance of the CRA-40/Land, CMFD, and ERA-Interim Datasets in Reflecting Changes in Surface Air Temperature over the Tibetan Plateau

    Corresponding author: Panmao ZHAI, pmzhai@cma.gov.cn
  • 1. Institute of Urban Meteorology, China Meteorological Administration, Beijing 100089
  • 2. State Key Laboratory of Severe Weather, Chinese Academy of Meteorological Sciences, Beijing 100081
Funds: Supported by the Second Tibetan Plateau Scientific Expedition and Research Program (STEP; 2019QZKK1001) and science funding from Beijing Meteorological Service (BMBKJ202003008)

Abstract: We analyzed the spatiotemporal variations in surface air temperature and key climate change indicators over the Tibetan Plateau during a common valid period from 1979 to 2018 to evaluate the performance of different datasets on various timescales. We used observations from 22 in situ observation sites, the CRA-40/Land (CRA) reanalysis dataset, the China Meteorological Forcing Dataset (CMFD) and the ERA-Interim (ERA) reanalysis dataset. The three datasets were spatially consistent with the in situ observations, but slightly underestimated the annual mean surface air temperature. The daily mean surface air temperature estimated by the CRA, CMFD and ERA datasets were closer to the in situ observations after correction for elevation. The CMFD showed the best performance in simulating the annual mean surface air temperature over the Tibetan Plateau, followed by the CRA and ERA datasets with comparable performances. The CMFD was relatively accurate in simulating the daily mean surface air temperature over the Tibetan Plateau on an annual scale, whereas both the CRA and ERA datasets performed better in summer than in winter. The increasing trends in the annual mean surface air temperature over the Tibetan Plateau from 1979 to 2018 reflected by the CRA dataset and the CMFD were 0.5°C (10a)−1, similar to the in situ observations, whereas the warming rate in the ERA dataset was only 0.3°C (10a)−1. The trends in the length of the growing season derived from the in situ observations, the CRA, CMFD and ERA datasets were 5.3, 4.8, 6.1 and 3.2 day (10a)−1, respectively. Our analyses suggest that both the CRA dataset and the CMFD perform better than the ERA dataset in modeling the changes in surface air temperature over the Tibetan Plateau.

    • The Tibetan Plateau is extremely sensitive to global climate change and, as a result of its unique geographical location and environmental characteristics, its climatic factors are more representative of climate change than those of low-altitude areas at the same latitude (Liu and Chen, 2000). Climate change over the Tibetan Plateau had affected the water resources and threatens the livelihoods of people living on the plateau and in the surrounding regions. The potential impacts of climate change on both fragile natural ecosystems and socioeconomic development is becoming increasingly apparent (Ding and Zhang, 2008; Kang et al., 2010). The variation in the surface air temperature over the Tibetan Plateau also affects climate change in East Asia (Smith, 1979; Burrows et al., 2011) and may provide important insights into the Holocene temperature conundrum resulting from the enhanced sensitivity of high-altitude regions to global climate change (Pang et al., 2020).

      Changes in surface air temperature and their influence on the Tibetan Plateau have long been of concern. This region has experienced the highest increase in annual air temperature in China in recent years (Song et al., 2019). Warming is greater at high elevations over the Tibetan Plateau than at lower elevations, especially during winter (Liu et al., 2009; Yang et al., 2010). However, existing estimates of the impact of climate change are highly uncertain due to the lack of observational sites in the harsh terrain, especially in the western and central regions of the plateau, and the short time period over which climate data have been collected. Gridded reanalysis datasets are urgently needed to give a more comprehensive understanding of the changes in the surface air temperature over the Tibetan Plateau.

      Reanalysis datasets, multi-source merged datasets and satellite remote sensing data are widely used in climate change research, but the quality of different datasets varies greatly. Large-coverage satellite imagery is becoming the predominant source of data used to monitor the temperature trend in this unique environment as a result of limited physical access to the Tibetan Plateau (Wang, 2016). However, most of the reanalysis products show a relatively limited performance over the Tibetan Plateau (Zhao et al., 2015).

      Public datasets from the ECMWF are generally recognized as excellent sources of reanalysis data. Zhao et al. (Zhao and Fu, 2009) found that the ERA-40 dataset was significantly superior to the NCEP/NCAR reanalysis dataset in long-term studies of climate change in China. Studies have also shown that the ERA-40 and JRA-25(JRA无全称) datasets are closer to the actual observed values in climate studies (Zhao et al., 2006; Deng et al., 2010). The ERA-Interim (ERA) dataset is a third-generation reanalysis product using a much-improved atmospheric model and assimilation system from those in the ERA-40 dataset (Dee et al., 2011, 2014). The ERA dataset is generally more applicable to the study of temperature change in Tibet than the NCEP/NCAR reanalysis dataset (Sun et al., 2013). At the same altitude, the ERA-40 reanalysis dataset is more applicable and referential than other data and, from a vertical perspective, the NCEP/NCAR reanalysis dataset is more universal and accurate (Ming et al., 2019).

      China has recently produced CRA-40/Land (CRA), a land surface reanalysis dataset providing high-quality land element information (Liang et al., 2020). The CRA dataset is an important land surface component of China’s first generation 40-year global atmospheric reanalysis product (CRA-40; Liu et al., 2017; Liang et al., 2020). The China Meteorological Forcing Dataset (CMFD; Chen et al., 2011; Yang and He, 2016) is the first high-resolution meteorological forcing merged dataset for land processes in China (He et al., 2020). The quality and applicability of these two new datasets over the Tibetan Plateau is worth exploring.

      We carried out comparative analyses of the CRA, CMFD and ERA datasets and compared their performance with in situ observational data. We then evaluated the applicability of the three datasets to simulations of the spatiotemporal variations in some key climate change indicators of the surface air temperature over the Tibetan Plateau.

    2.   Data and methods
    • 1) In situ observed data

      The in situ observed data are real-time observational data from 22 national reference climate stations on the Tibetan Plateau; 14 stations are located in the Tibet Autonomous Region and eight in Qinghai Province. These data are archived by the National Meteorological Information Center of the China Meteorological Administration after quality control (Ren et al., 2015). Figure 1 shows the location of the reference stations and Table 1 provides data about their locations.

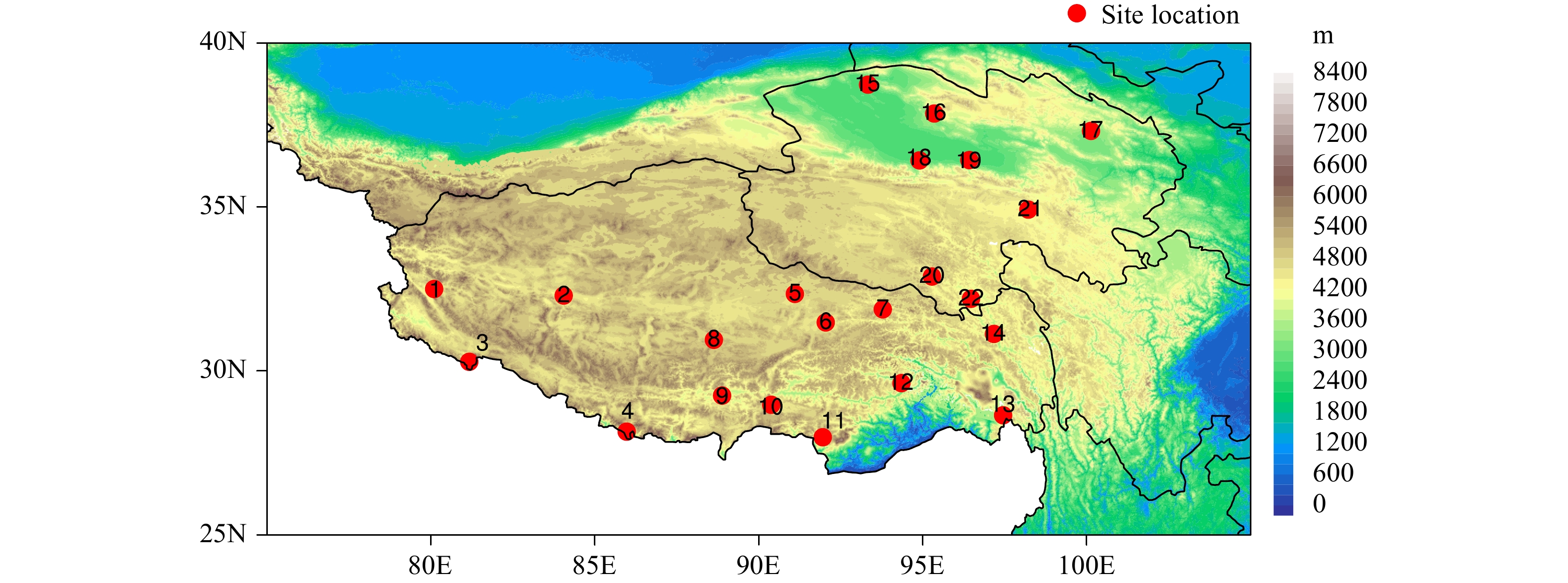

      Figure 1.  Location of the national reference climate stations in China.

      Station
      No.
      Station nameStation IDLongitude
      (° E)
      Latitude
      (° N)
      Altitude
      (m)
      1Shiquanhe5522880324278
      2Gaize5524884324414
      3Pulan5543781303900
      4Nielamu5565585283810
      5Anduo5529491324800
      6Naqu5529992314507
      7Suoxian5610693314022
      8Shenzha5547288304672
      9Rikaze5557888293836
      10Langkazi5568190284431
      11Cuona5569091274280
      12Linzhi5631294282991
      13Chayu5643497282366
      14Changdu5613797313315
      15Lenghu5260293382770
      16Dachaidan5271395373173
      17Gangcha52754100 373301
      18Geermu5281894362807
      19Nuomuhong5282596362790
      20Zaduo5601895324066
      21Maduo5603398344272
      22Nangqian5612596323643

      Table 1.  Location and information about the national reference climate stations in China.

      2) CRA reanalysis dataset

      The CRA dataset covers 40 years from 1979 to 2018. It is based on an assimilation algorithm, a multi-source fusion method, the Noah3.3 Land surface model and the establishment of core technologies, such as surface parameter optimization by the National Meteorological Information Center. It is China’s first generation global land surface reanalysis dataset. The spatial resolution of the CRA40 dataset is about 34 km (1152×576, Gaussian grid) and the temporal resolution is 3 h. The CRA dataset includes two types of data: atmosphere-driven fusion products and land surface products. The surface air temperature product is developed by ensemble assimilation. The data sources of the surface air temperature product are the global ground observational dataset (China basic data, CFSR OBS, ISD三者都无全称) and the CRA dataset (http://data.cma.cn/analysis/cra40). The CRA dataset is a useful supplement to the land surface elements in the CRA dataset as it uses assimilation and fusion algorithms to improve the quality of near-surface atmosphere-driven data and to optimize surface vegetation/soil parameters (Liang et al., 2020).

      3) CMFD

      The CMFD is a reanalysis dataset of near-surface meteorological and environmental elements developed by the Institute of Qinghai-Tibet Plateau, Chinese Academy of Sciences (https://data.tpdc.ac.cn/zh-hans/data/8028b944-daaa-4511-8769-965612652c49/). The dataset is based on the existing international Princeton reanalysis dataset, the GLDAS (Global Land Data Assimilation System) dataset, the World Climate Research Programme GeWEx-SRB (Global Energy and Water Exchanges Surface Radiation Budget) radiation dataset and the TRMM (Tropical Rainfall Monitoring Mission) precipitation dataset as the background field. The CMFD is constructed by integrating conventional meteorological observational data from the China Meteorological Administration. The temporal resolution is 3 h and the horizontal spatial resolution is 0.1°. The accuracy of this dataset is between that of meteorological observational data and satellite remote sensing data. The CMFD contains seven elements (variables): the 2-m air temperature, the surface pressure, the specific humidity, the 10-m wind speed, the downward shortwave radiation, the downward longwave radiation and the precipitation rate. It can provide data to drive land surface process simulations for China (Chen et al., 2011; Yang and He, 2016).

      4) ERA reanalysis dataset

      The ERA dataset provided by ECMWF (https://apps.ecmwf.int/datasets/data/interim-full-daily/levtype=sfc/) is a reanalysis dataset for the global atmosphere covering the data-rich period since 1979. The ERA dataset originally ran from 1989 to 31 August 2019, but a 10-year extension for the time period 1979–1988 was produced in 2011 (Berrisford et al., 2011a). The ERA dataset uses a fixed version of a numerical weather prediction system (IFS-CY31r2无全称) to produce the reanalysis data. The fixed version ensures that no spurious trend is caused by an evolving numerical weather prediction system, although the changing observing system can create such trends (Berrisford et al., 2011b). The numerical weather prediction system blends or assimilates observations with a previous forecast to obtain the best fit to both. The ERA reanalysis dataset has a resolution of 0.75°×0.75°; the vertical direction is divided into 60 levels and uses a T55 grid. It provides connectivity between the ERA-40 dataset and the next generation of products.

    • The physical quantity selected for study here is the daily mean surface air temperature at a height of 2 m. A bilinear interpolation method is used to interpolate the reanalysis data at different spatial resolutions to the corresponding national reference climate station. The values of the four grid points around the site are weighted and linear interpolation is used to obtain the value for the site.

      As a result of the drastic change in altitude over the plateau, the difference between the altitude of the reanalysis data and the observational site may cause an abnormal deviation in the air temperature. The surface air temperature of the three datasets therefore needs to be corrected to take into account the decrease in temperature with altitude (Zhao et al., 2008):

      $$\hspace{-68pt} T=t+\gamma dz{,} $$ (1)

      where $ T $ is the surface air temperature after correction for elevation, $ t $ is the surface air temperature after bilinear interpolation, $ \gamma $ is the rate of decrease in temperature with altitude and $ dz $ is the difference between the altitude of the interpolated model terrain and the actual altitude of the site.

      Common metrics used to evaluate the accuracy of forecasts include the mean bias error (MBE or bias), the mean absolute error and the root-mean-square error (RMSE) (Kato, 2016). The RMSE is the square root of the MSE. The MBE is primarily used to estimate the average bias in the model and to decide whether steps need to be taken to correct the model bias (Pal, 2017). The RMSE is used to describe the error between two values and mainly reflects the degree of dispersion of the data. We used the MBE, RMSE and other calculation methods to evaluate the daily mean surface air temperature of different datasets.

      The equation for the MBE is:

      $$\hspace{-30pt} {\rm{MBE}}=\frac{1}{N}{{\Sigma }}\left(M-O\right){.} $$ (2)

      The equation for the RMSE is:

      $$ {\rm{RMSE}}=\sqrt{\frac{1}{N}\sum _{i=1}^{N}{(M-O)}^{2}}{,} $$ (3)

      where $ M $ is the value of the reanalysis and merged data, $ O $ is the value of the in situ observed data and $ N $ is the number of samples in the analysis period (Wilks, 2006; Wei, 2007).

      Taylor diagrams provide a visual framework for comparing model results with a reference model or, more commonly, to observations (Taylor, 2001). Because different variables may have widely varying numerical values, the model results are normalized by the reference variables. The ratio of the normalized variances indicates the relative amplitude of the model and the observed variations. The pertinent statistics are the weighted pattern correlation and the normalized RMSE differences.

      Based on the thermal growing season length (GSL) defined by the Expert Team on Climate Change Detection and Indices, the start of the thermal growing season (GSS) is defined as the first occurrence in a year of at least six days with a daily mean air temperature >5°C. Similarly, the first occurrence of at least six days with a daily mean air temperature <5°C after July 1 indicates the growing season end (GSE). The GSL is measured by the length of the interval between the GSS and the GSE. If the GSS is not found, then GSS/GSE will be considered as undefined and the GSL will be set to 0. If no GSE is found, then the GSL is counted until the end of the year.

    3.   Results
    • Figure 2 shows that the three datasets are generally consistent in describing the spatial pattern of the daily mean surface air temperature over the Tibetan Plateau. The three gridded datasets (CRA, CMFD and ERA) show that the overall temperature of the Tibetan Plateau is significantly lower than that of the surrounding areas. There are two clear centers of low temperature over the plateau (the Kunlun and Qilian mountain regions) and the centers of high temperature are located in the Qaidam Basin. All the data show that the daily mean surface air temperature over the Tibetan Plateau is generally <0°C. The daily mean surface air temperature is generally less than −5°C over the northwest and southwest of the Tibet Autonomous Region in the Kunlun mountains and the Himalaya. The daily mean surface air temperature in northwest Qinghai Province in the Qaidam Basin is significantly higher than that in other areas, with values >5°C in the hinterland of the basin.

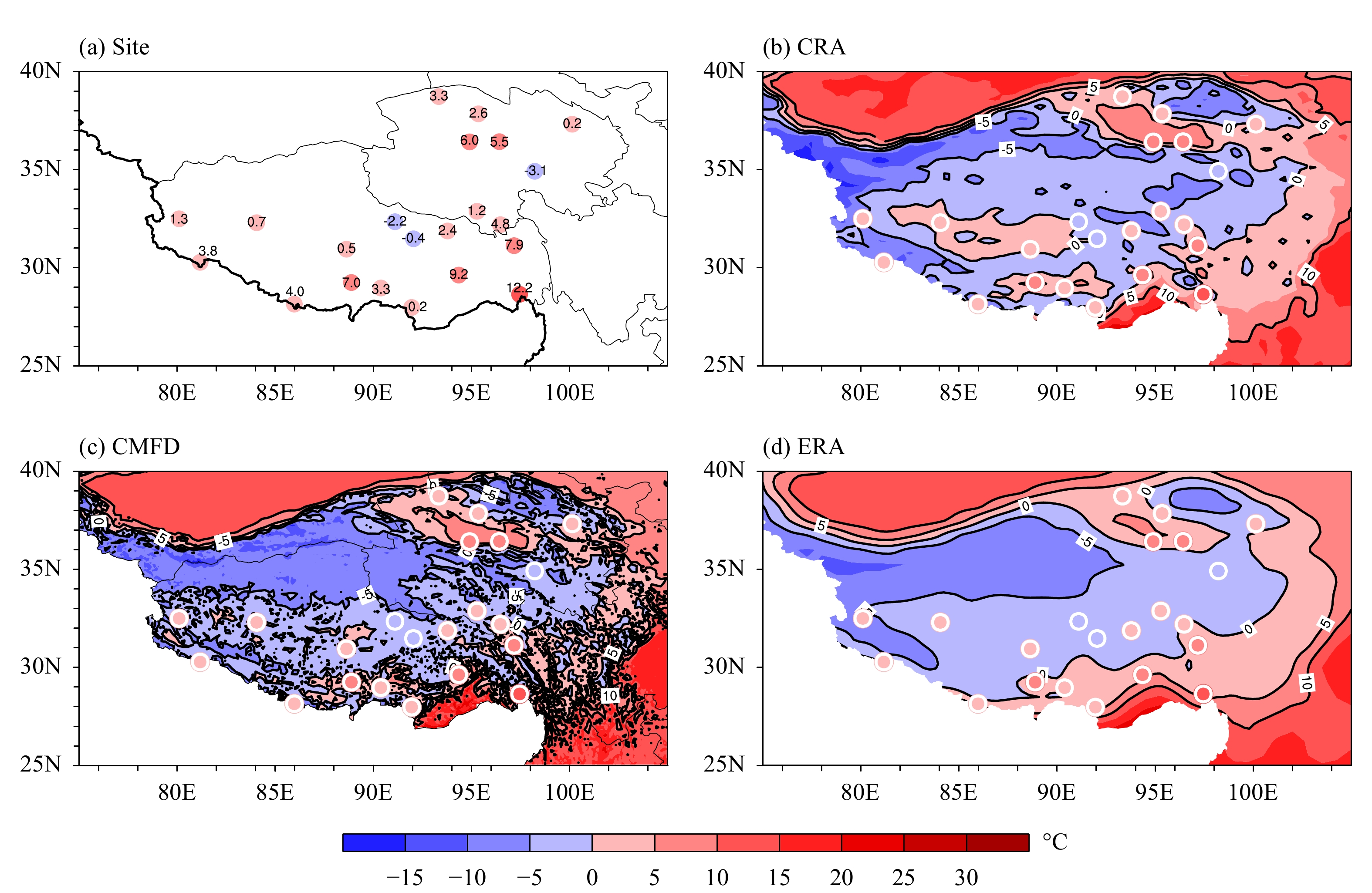

      Figure 2.  Spatial pattern of the annual mean surface air temperature over the Tibetan Plateau averaged from 1979 to 2018 for (a) the in situ observation sites, (b) the CRA dataset, (c) the CMFD and (d) the ERA dataset.

      The simulation of the annual mean surface air temperature in the CRA dataset is generally >0°C, especially in central Tibet, which is significantly higher than in the two other datasets. However, the observational data in Fig. 2a shows that the daily mean surface air temperature in central Tibet from 1979 to 2018 was mostly >0°C. The annual mean surface air temperature in central Tibet in the CRA dataset is closer to the in situ observed data than the two other datasets.

    • Considering the complex topography over the Tibetan Plateau, the terrain height of the reanalysis datasets may differ from the actual altitude, leading to a deviation in the surface air temperature between the reanalysis and merged datasets and the in situ observed data. According to Tang et al. (2003) and Jiang et al. (2003), the rate of decrease of air temperature with altitude over the Tibetan Plateau is roughly 0.65°C (100 m)-1. We therefore performed altitude interpolation for the three reanalysis temperature datasets based on this rate of decrease.

      Figures 3a and b show the average deviation (indicated by the MBE) and RMSE, respectively, of the daily mean surface air temperature (after elevation correction) between the in situ observations and the gridded data over the Tibetan Plateau after interpolation. Without correction for elevation, the CRA, CMFD and ERA datasets generally underestimate the daily mean surface air temperature. The annual mean deviation of the datasets from the observational data is −3.0, −1.1 and −3.0°C, respectively, and the RMSE is 4.5, 1.8 and 4.0°C, respectively. After correction for elevation, the daily mean air temperature derived from the CRA, CMFD and ERA datasets are more comparable, but, on average, have a lower annual mean deviation (0.2, 0.09 and 0.2°C, respectively) and lower RMSE (2.7, 1.1 and 2.7°C, respectively). Therefore, after correction for elevation, the three datasets give a better description of the daily mean surface air temperature over the Tibetan Plateau.

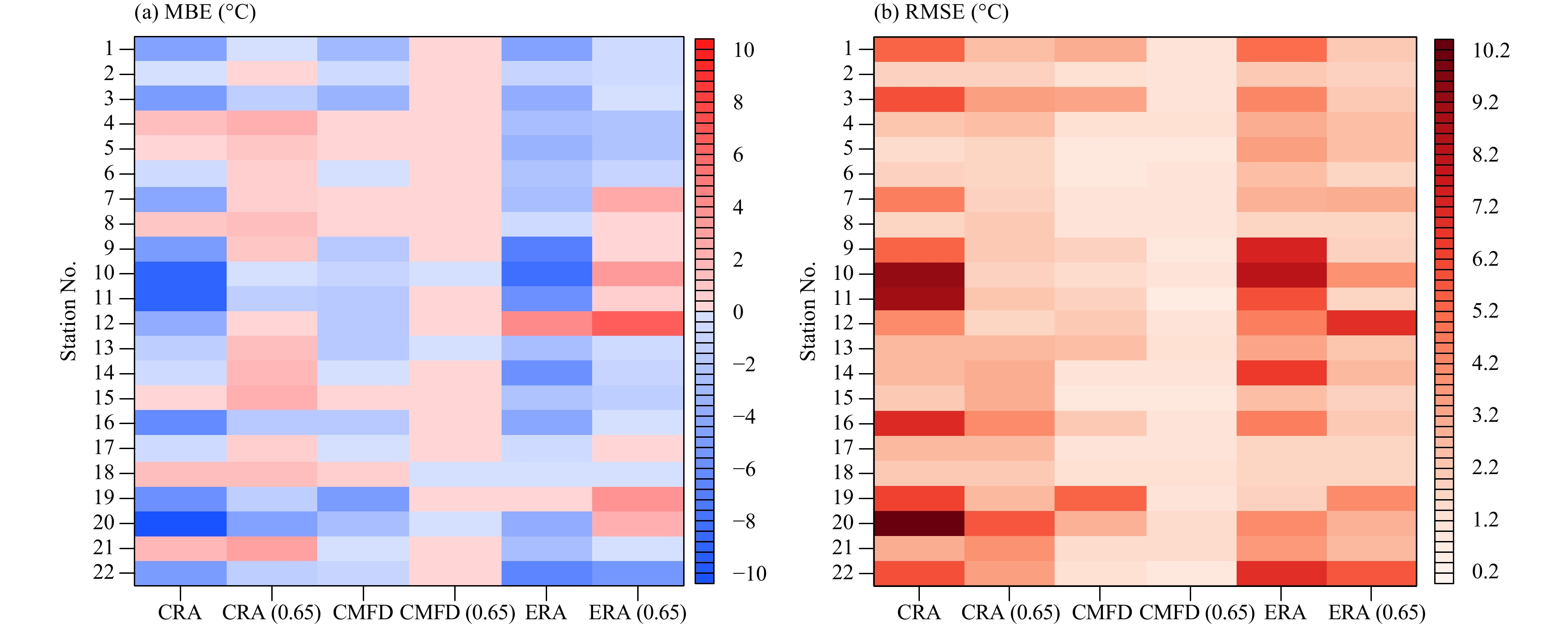

      Figure 3.  (a) MBE and (b) RMSE of the daily mean surface air temperature between the in situ observations and the three gridded datasets for each site. Dataset names without (with) brackets (e.g., (0.65)) indicate results before (after) correction for elevation.

    • After correction for elevation using a rate of decrease in temperature with altitude of 0.65°C (100 m)-1, the three datasets give a better description of the daily mean surface air temperature over the Tibetan Plateau. We therefore use these corrected data in the following evaluation.

    • The Taylor diagrams in Fig. 4a show that the three datasets can fit the daily mean surface air temperature over the Tibetan Plateau on the annual scale. The average correlation of the CRA, CMFD and ERA datasets and the observational data on the daily scale is 0.96, 0.99 and 0.97, respectively. The mean ratio of the standard deviation for the three datasets is 1.07, 1.01 and 1.00, respectively. The correlation between the CRA, CMFD and ERA datasets and the observational data for the daily mean air temperature in summer is 0.79, 0.93 and 0.80, respectively (Fig. 4b). The mean ratio of the standard deviation for the CRA, CMFD and ERA datasets is 0.99, 1.05 and 0.95, respectively. The correlation between the CRA, CMFD and ERA datasets and the observational data in winter is 0.74, 0.92 and 0.79, respectively. The mean ratio of the standard deviation is 1.00, 1.01 and 0.88, respectively (Fig. 4c).

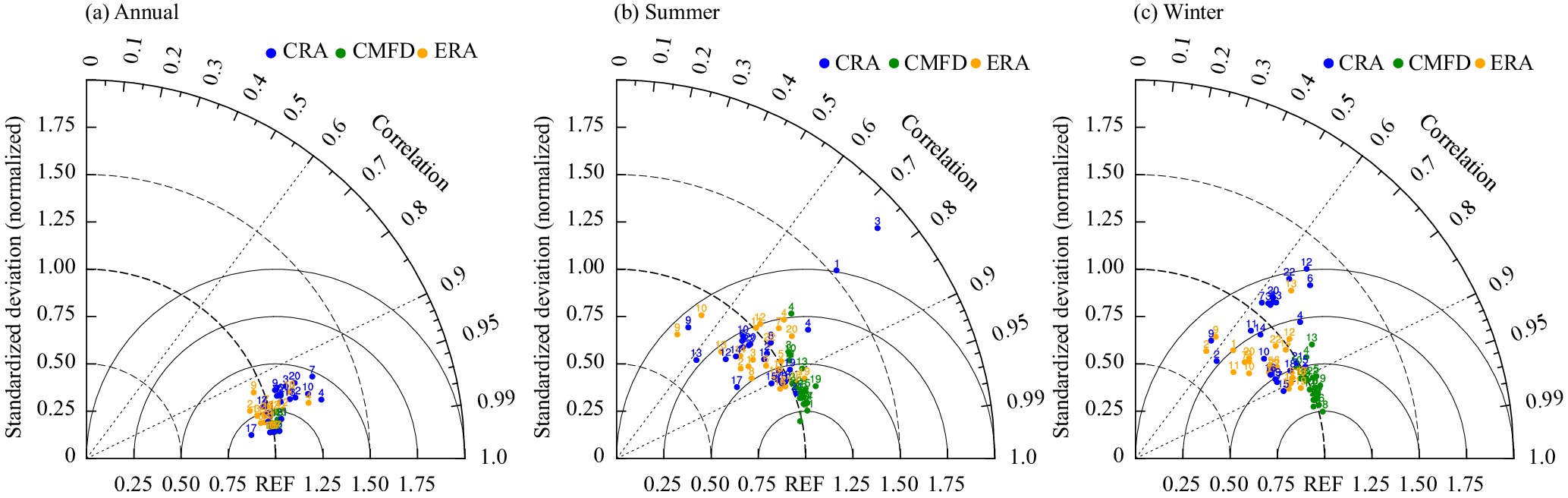

      Figure 4.  Taylor diagrams comparing the CRA, CMFA and ERA datasets with the in situ observations of the daily mean surface air temperature on (a) an annual scale, (b) during summer and (c) during winter. Summer is defined from June to August and winter is defined from December to the following February.

      Based on the mean correlation coefficient and the RMSE on the seasonal scale, the CMFD merged dataset is relatively accurate in simulating the daily mean surface air temperature over the Tibetan Plateau in both summer and winter and the performance of the other two datasets is slightly better in summer than in winter. In summer, the surface air temperatures derived from CRA dataset underestimate the actual temperature, whereas the surface air temperatures derived from the ERA dataset are evenly distributed around the observations. This indicates that the ERA dataset gives a more stable simulation of the surface air temperature in summer. In winter, however, the difference between CRA and ERA data is not significant. In summary, CMFD has the best performance in simulating the annual mean surface air temperature over the Tibetan Plateau, following by the CRA and ERA datasets with comparable performances.

    • Figure 5 shows that the change in the annual mean surface air temperature of most of the stations has a significantly positive trend, with the changes in surface air temperature all <1°C (10a)-1, consistent with the change in temperature in the three datasets. The linear trend of the annual mean surface air temperature from 1979 to 2018 estimated by the in situ observations is 0.5°C (10a)−1. The increasing trend in the annual mean surface air temperatures derived from the CRA and CMFD datasets during the time period 1979 to 2018 is 0.5°C (10a)−1, whereas the ERA dataset slightly underestimates the warming rate [0.3°C (10a)−1]. These results support previous studies showing elevation-dependent warming over the Tibetan Plateau (Qin et al., 2009; You et al., 2020). The exception was Langkazi station (Fig. 5.10), where the warming rate was less than at some stations at lower elevations. This may be because the warming rate is not only related to elevation, but also to the topography and vegetation cover.

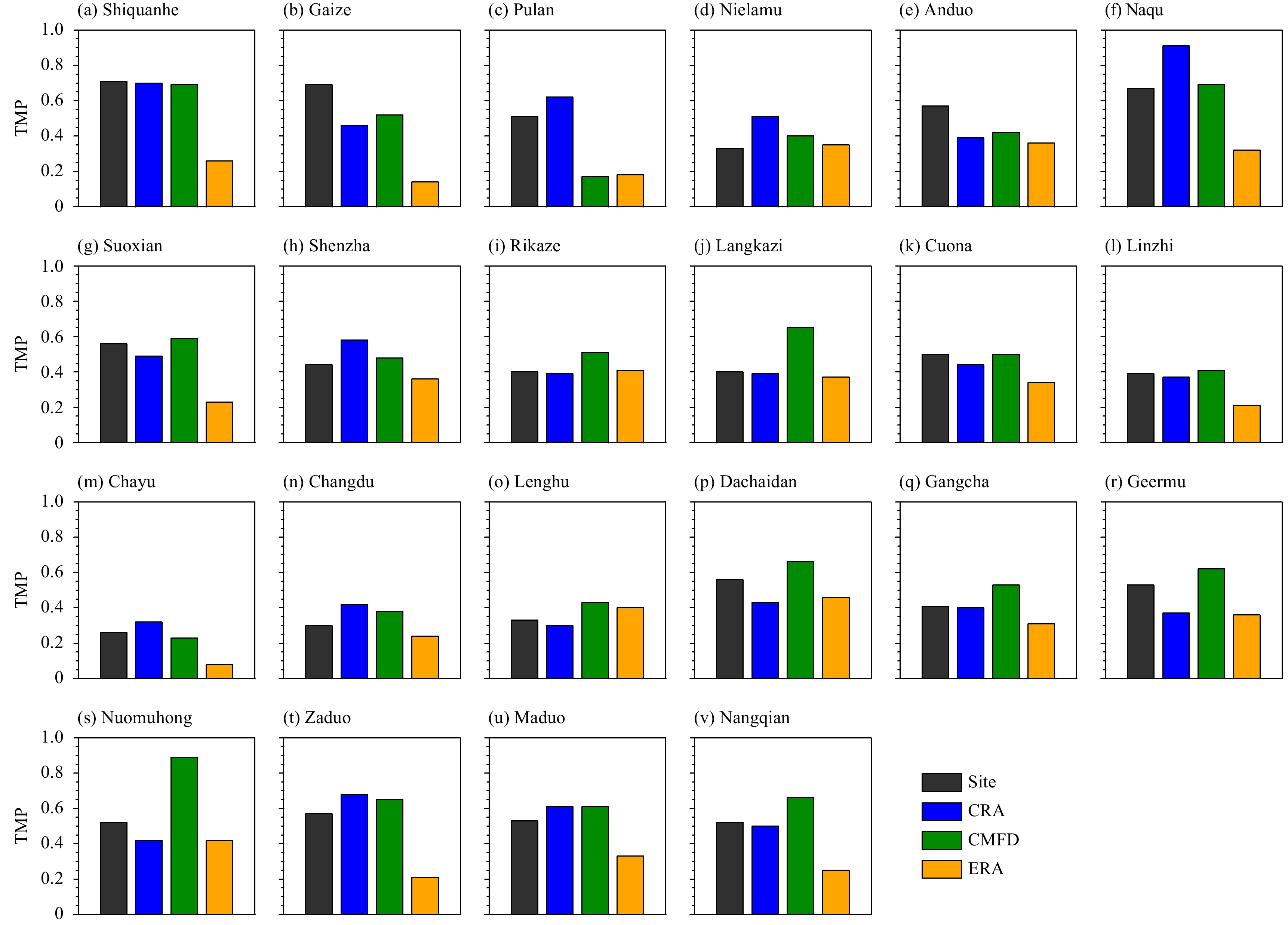

      Figure 5.  Changes in the daily mean surface air temperature [°C (10a)-1] from 1979 to 2018 derived from different datasets for each in situ station.

    • The annual mean thermal GSL of the Tibetan Plateau estimated by the observational data extended by 5.3 day (10a)−1 from 1979 to 2018 (Fig.6a). The CRA, CMFD and ERA datasets consistently show a trend in the GSL of 4.8, 6.1 and 3.2 day (10a)-1, respectively. Both the observational and reanalysis datasets show an earlier start of the thermal GSS over the Tibetan Plateau from 1979 to 2018 (Fig. 6b). On average, the advancing rate of the GSS estimated by the observational data and the CRA, CMFD and ERA reanalysis datasets is 3.4, 2.5, 3.6 and 1.8 day (10a)−1, respectively. In terms of the end of the thermal GSS, the in situ observations show that the GSE advanced by an average of 1.9 day (10a)−1, whereas the CRA, CMFD and ERA datasets show that the GSE was delayed on average by 2.3, 2.5 and 1.4 day (10a)−1, respectively (Fig. 6c).

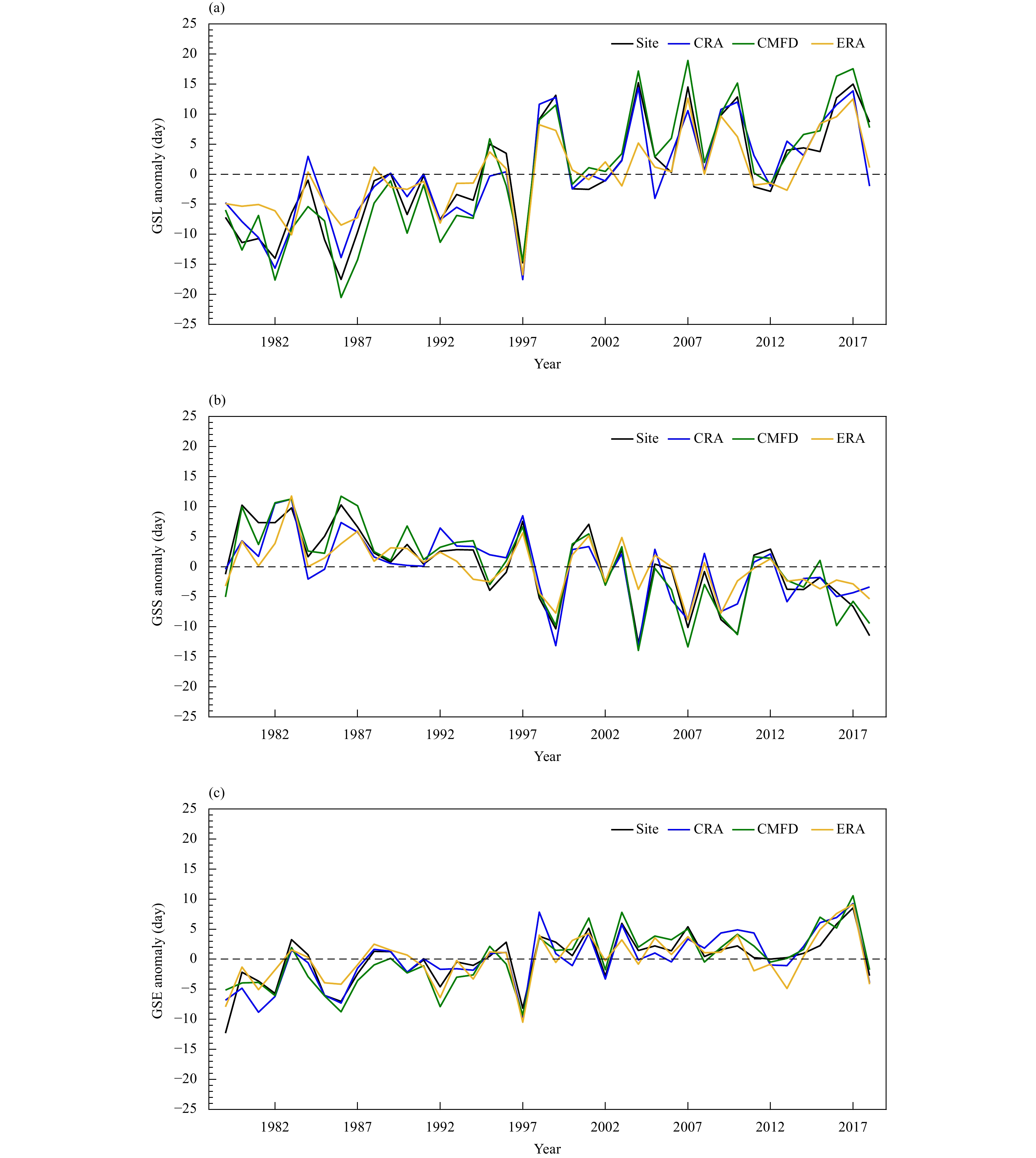

      Figure 6.  Anomalies in the GSL, GSS and GSE over the Tibetan Plateau from 1979 to 2018.

      Spatially, the changes in the GSL from 1979 to 2018 from the ERA reanalysis dataset at different stations are clearly smaller than the observational data. The changes in the GSL of the CMFD at different stations are generally larger than observational data. By comparison, the changes in the GSL estimated by the CRA dataset are closer to those in the in situ observations (Fig. 7).

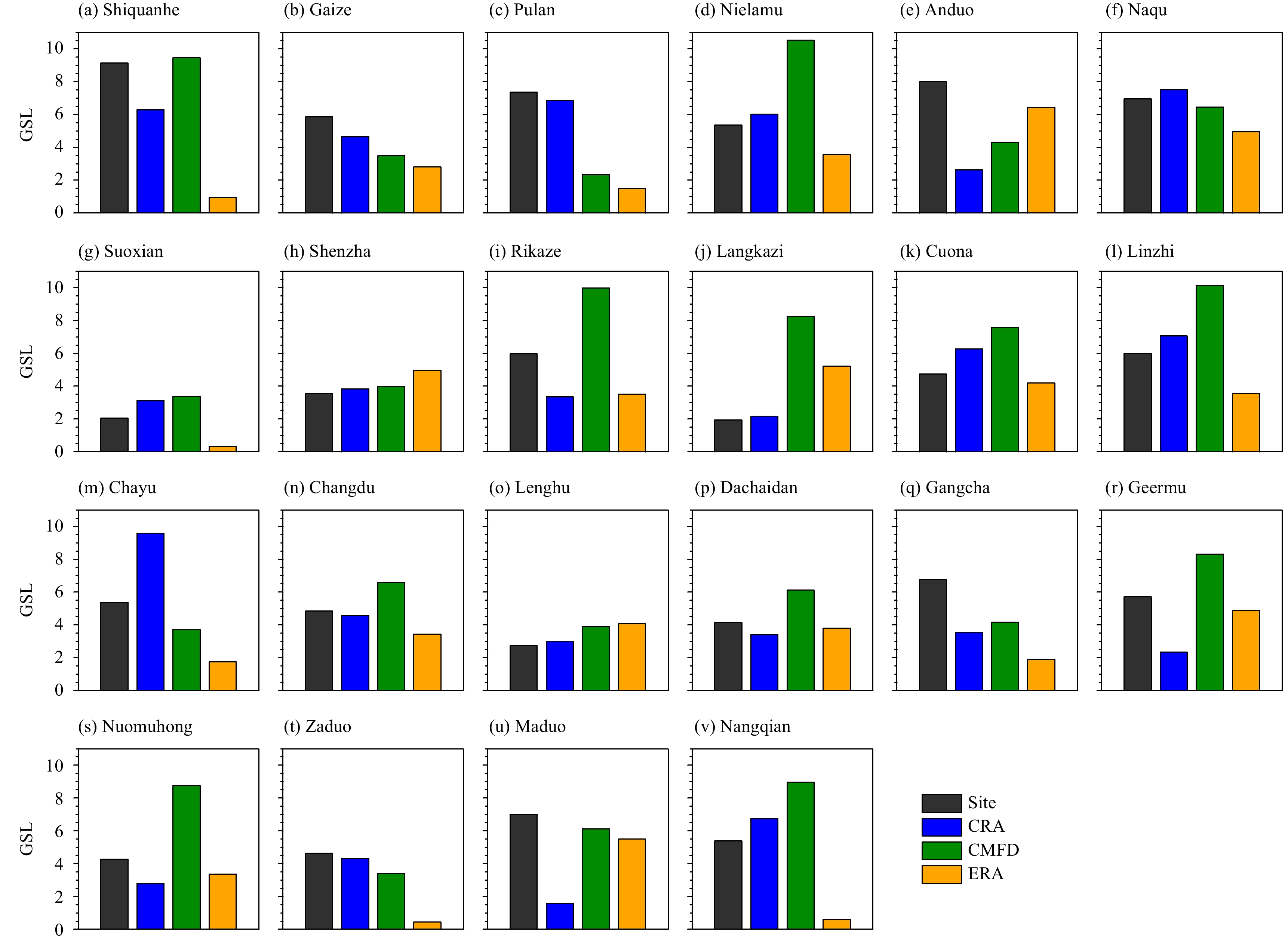

      Figure 7.  Changes in the GSL (day (10a)-1) from 1979 to 2018 for each in situ station derived from the observations and different datasets.

    4.   Discussion and conclusions
    • We evaluated the daily mean air temperature derived from three reanalysis datasets (CRA, CMFD and ERA) and merged data over the Tibetan Plateau from 1979 to 2018 against in situ observations. Our main conclusions are as follows.

      1) The spatial patterns of the annual mean surface air temperature in the CRA, CMFD and ERA datasets are generally consistent with the in situ observations over the Tibetan Plateau. Regionally, the annual mean surface air temperature in the CRA dataset is closer to the in situ observations, especially in central Tibet.

      2) All three gridded datasets slightly underestimate the annual mean surface air temperatures. However, after correction for elevation, these datasets are comparable with the station-based in situ observations. The average differences between these three datasets (CRA, CMFD, ERA) and the in situ observations after correction for elevation are 0.2, 0.09 and 0.2°C with RMSEs of 2.7, 1.1 and 2.7°C, respectively. This suggests that correction for elevation can further improve the performance of the reanalysis datasets in reflecting the surface air temperatures over the complex topography of the Tibetan Plateau. The CRA dataset has a comparable performance to the ERA dataset for the daily surface air temperature.

      3) The increasing trends in the annual mean surface air temperature derived from the CRA and CMFD datasets during the time period 1979-2018 are both 0.5°C (10a)-1, the same as the in situ observations, but the temperature trend for the ERA dataset is only 0.3°C (10a)−1.

      4) The GSL trends reflected in the CRA, CMFD and ERA datasets are 4.8, 6.1 and 3.2 day (10a)−1, respectively. Quantitively, the change in the GSL reflected in the CRA dataset is closer to the observed trend [5.3 day (10a)−1].

      The unique topography of the Tibetan Plateau and the sparse distribution of observational stations mean that there is a lack of observational data in this important region. We have shown here that reanalysis datasets and merged data for the Tibetan Plateau complement the sparse in situ observations. The differences in surface air temperature among the three datasets are mainly due to the different reanalysis/merging methods, data sources and spatial resolution. The performance of both the CRA and CMFD datasets in reflecting the changes in surface air temperature is better than that of the ERA dataset.
